Product Introduction

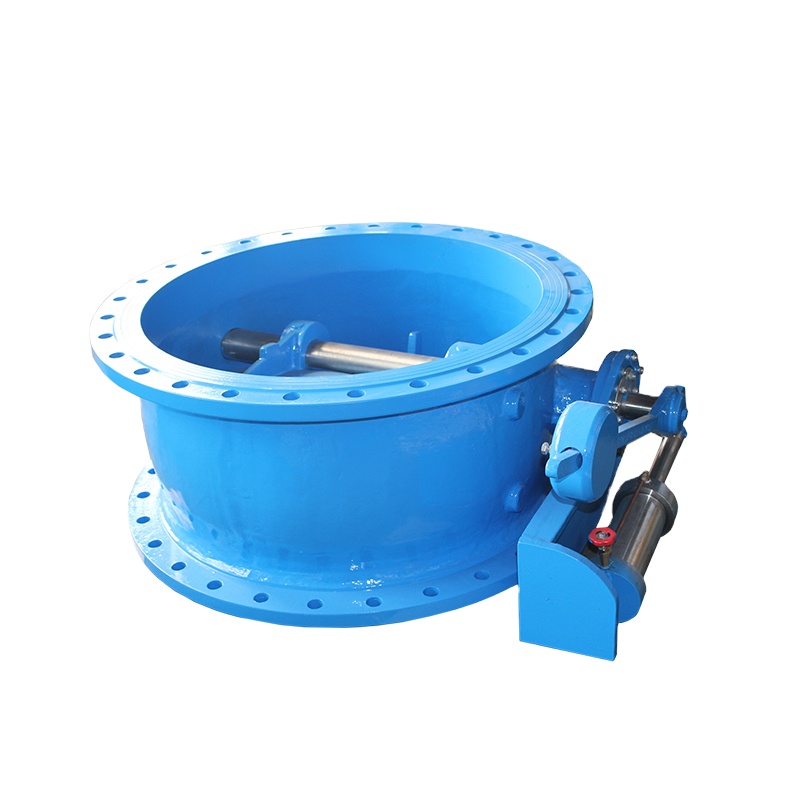

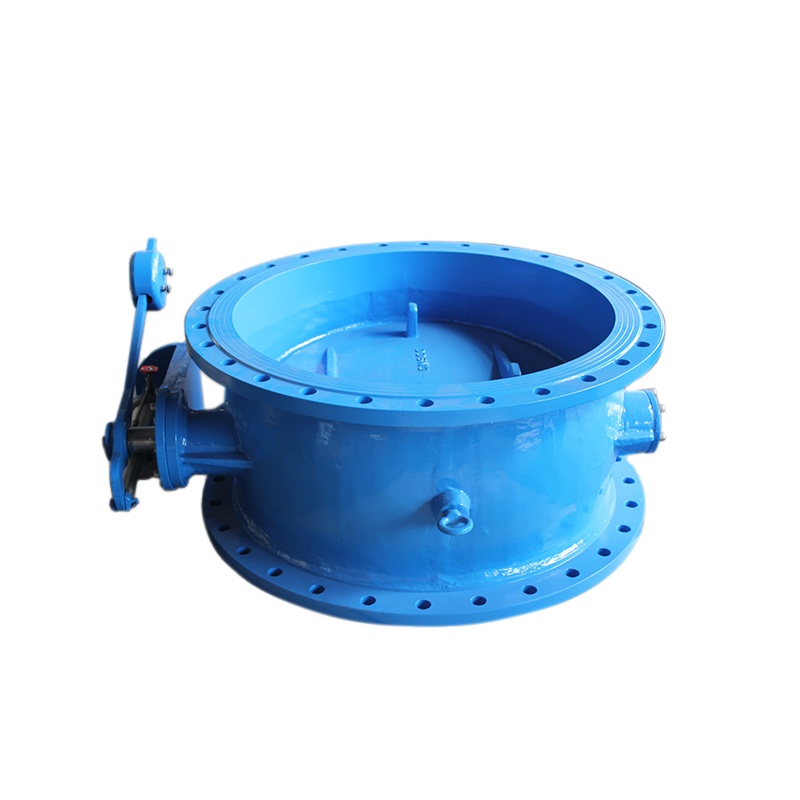

Tilting Disc Butterfly Buffer Check Valve
As the professional manufacture, we would like to provide you The Tilting Disc Butterfly Buffer Check Valve. And we will offer you the best after-sale service and timely delivery.
Tilting Disc Check Valve offers significant energy savings compared to other types of conventional check valves because of its larger flow area and low head loss characteristics. Tilting Disc Check Valve achieves full opening when the disc “tilts” in the flow of the media. Tilting Disc Check Valve is a cost-effective valve with a unique design that provides excellent tightness and minimizes water-hammering.
Model:Tilting Check Valve DN50--DN2000
Product Introduction
The Tilting Disc Butterfly Buffer Check Valve features:
1. The impact of the check valve is caused by the disc of the valve not reaching the closed position before the fluid flows back. Tilting Disc Check Valve can close quickly because the disc has a short running distance, so it can quickly reach the valve seat position, thereby minimizing the impact.
2. Tilting Disc Check Valve is suitable for preventing backflow of fluid in horizontal or vertical pipelines.
3. Tilting Disc Check Valve operates automatically. It opens under the pressure of the fluid flow rate and closes under the action of gravity.
4. In order to avoid premature wear, noise or vibration of moving parts, it is necessary to select the diameter of the check valve according to the fluid state.
2.Product Parameter (Specification)
Working pressure |
PN10 |
PN16 |
Shell pressure |
1.5Mpa |
2.4Mpa |
Seat pressure |
1.1Mpa |
1.76Mpa |
3.Product Feature And Application
The Tilting Disc Butterfly Buffer Check Valve is Simple structure, compact, small operating torque; Rotation opens quickly and it is widely used in Food, medicine, chemical industry, petroleum, electric power, light textile, paper and other water supply and drainage, gas pipeline for regulating the flow and control media circulation
4.Product Details
The body material of Tilting Disc Butterfly Buffer Check Valve normally be iron,carbon steel or stainless steel ,the disc also be iron,carbon steel or stainless steel ,the seat should be rubber or metal.
5.Product Qualification
Tilting Disc Butterfly Buffer Check Valve have original design,.exquisite technique,perfect manufacture and complete testing ways, it has passed ISO9001 international quality system certification.
6.Deliver,Shipping And Serving
We have big stock of Tilting Disc Butterfly Buffer Check Valve so the delivery time will be short. It can be ship through sea transporation .train transporation ,air transportation or others. The guarantee period should be 12-18 months.
