Product Introduction
Iron Dismantling Joint
The following is the introduction of high quality The Iron Dismantling Joint made in China, hoping to help you better understand it.

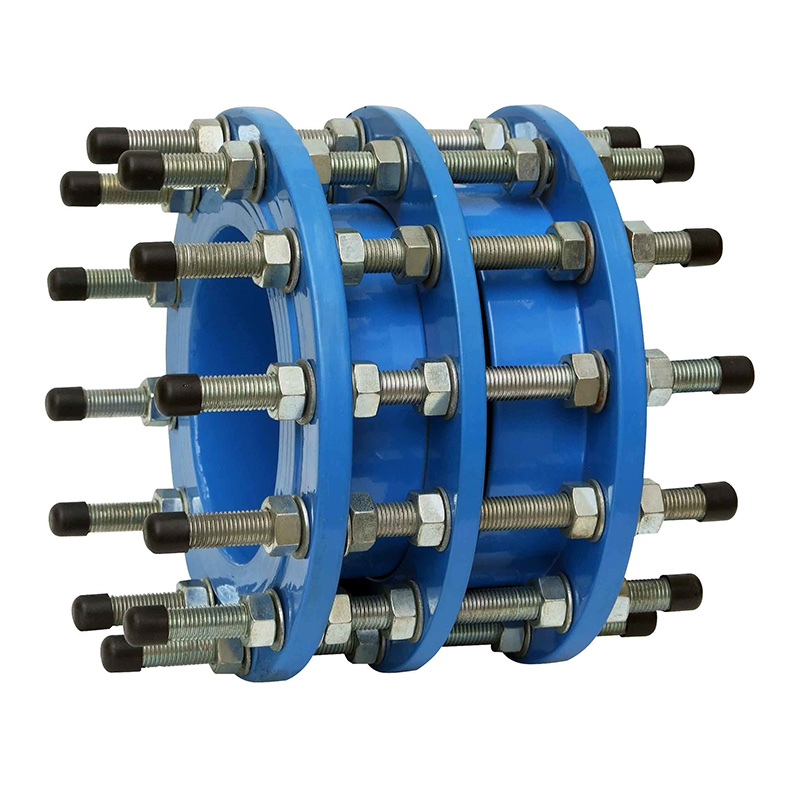

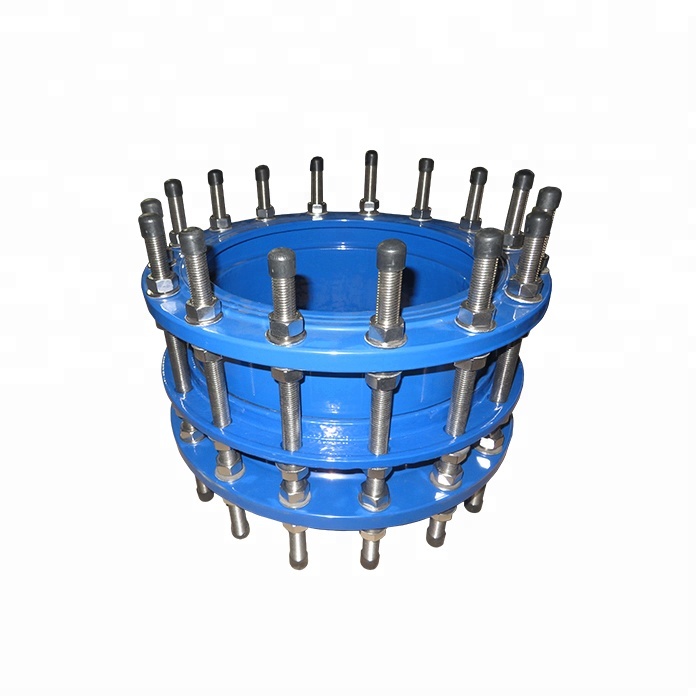

The CC2F double flange dismantling joint can transmit the pressure thrust of the connected parts and compensate the installation error of the pipeline, and can not absorb the axial displacement. The CC2F double flange dismantling joint is mainly used for loose connection with the accessories such as pumps and valves. In the course of use, it is mainly different from the compensation joint and the limit compensation joint. Its compensation amount refers to the adjustment amount during the installation and disassembly process. Once all the nuts are tightened, it is rigidly connected and can transmit the shaft. Heart, thus protecting valves, pumps and other equipment.
Model:Iron Dismantling Joint DN50--DN2000
The Iron dismantling joint
1. Product Introduction
CC2F double flange dismantling joints are suitable for conveying seawater, fresh water, hot and cold water, drinking water, domestic sewage, crude oil, fuel oil, lubricating oil, refined oil, air, gas, steam and granular powder with a temperature not higher than 250 degrees. medium.
It is mainly used to transfer the internal force of the pipeline to avoid damage caused by the products applied in the pipeline system due to excessive concentration of the force, so it is used in various types of pipeline systems.Tianjin Allway Valve Co.,Ltd. is Iron Dismantling Joint manufacturers and suppliers in China who can wholesale The Iron Dismantling Joint.
2.Product Parameter (Specification)
Working pressure |
PN10 |
PN16 |
Shell pressure |
1.5Mpa |
2.4Mpa |
Seat pressure |
1.1Mpa |
1.76Mpa |
3.Product Feature And Application
CC2F double flange dismantling joint is Simple structure, compact, small operating torque; Rotation opens quickly and it is widely used in Food, medicine, chemical industry, petroleum, electric power, light textile, paper and other water supply and drainage, gas pipeline for regulating the flow and control media circulation
4.Product Details
The body material of CC2F double flange dismantling joint normally be ductile iron,carbon steel or stainless steel , the seat should be rubber(EPDM/NBR), bolt/nut should be carbon steel.
5.Product Qualification
CC2F double flange dismantling joint have original design,.exquisite technique,perfect manufacture and complete testing ways, it has passed ISO9001 international quality system certification.
6.Deliver,Shipping And Serving
We have big stock of CC2F double flange dismantling joint so the delivery time will be short. It can be ship through sea transporation .train transporation ,air transportation or others. The guarantee period should be 12-18 months.
